COB Array (Chip-on-Board, 16 chips)

High Power Chip on Board LED

The epitex high-power LED COB product is equipped with 16 chips and supports a wide range of wavelengths from UV to SWIR.
Specifically designed as an optimal light source for long-distance illumination and machine vision, it allows you to choose your preferred wavelength in the IR/SWIR range where high light intensity is required.

This product is available in two types: with a potting lens and with a flat lens.
By forming dome-shaped lenses directly above each LED chip to enhance light extraction efficiency, the potting lens type achieved 127% light output compared to the flat lens type.

Contact
COB Array (Chip-on-Board, 16 chips)

High-power chips of 1 mm × 1 mm across all wavelengths, from visible to SWIR, can be mounted.

Improved light extraction efficiency by placing a potting lens on each LED chip

Optimal applications include infrared lighting, machine vision, surveillance cameras, and optical sorting.

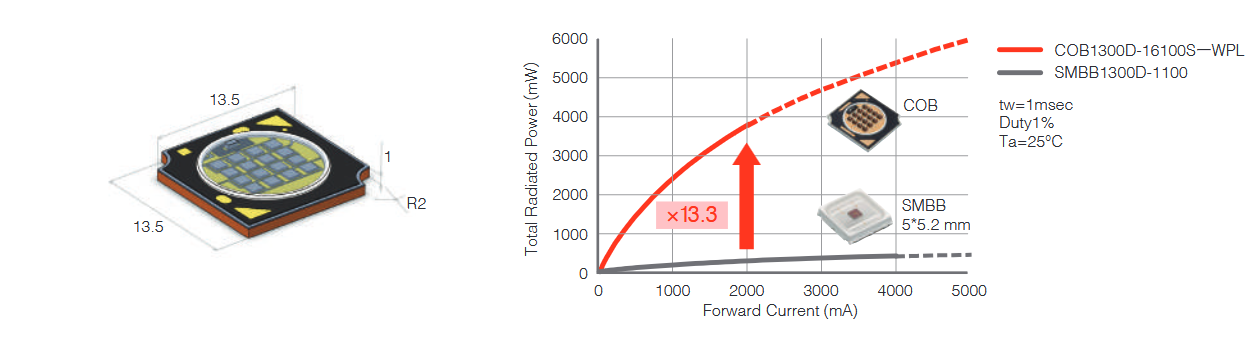

Output (per product)
mW@1A
vs SMBB(1chip)
mW@1A
SMBB (1chip)

210

COB (16chips) Flat
2033
9.6 times
COB (16chips) + Potting Lens
2681
12.8 times

Specifications

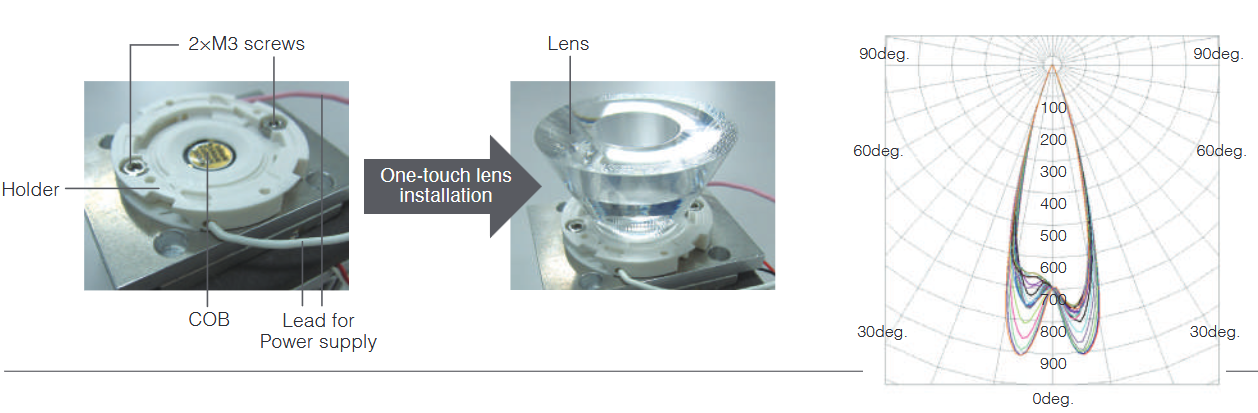

Holders, lenses and other accessories available for general purpose COBs can be used. (e.g. LEDiL C16686_ILONA-RS)
